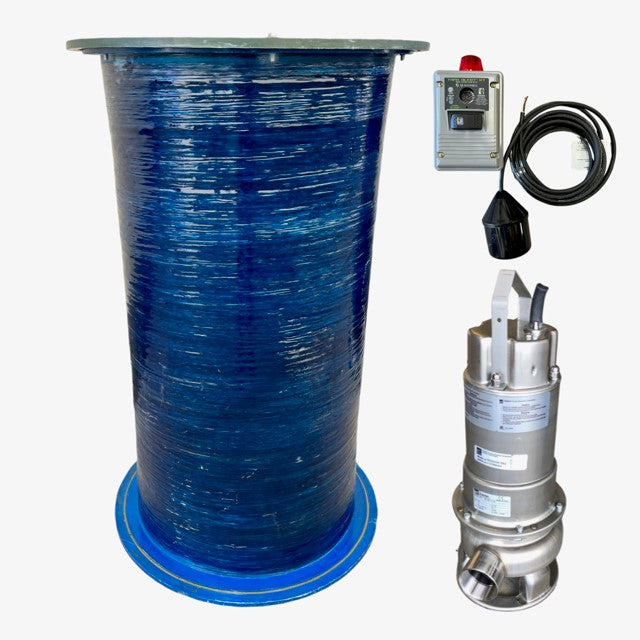

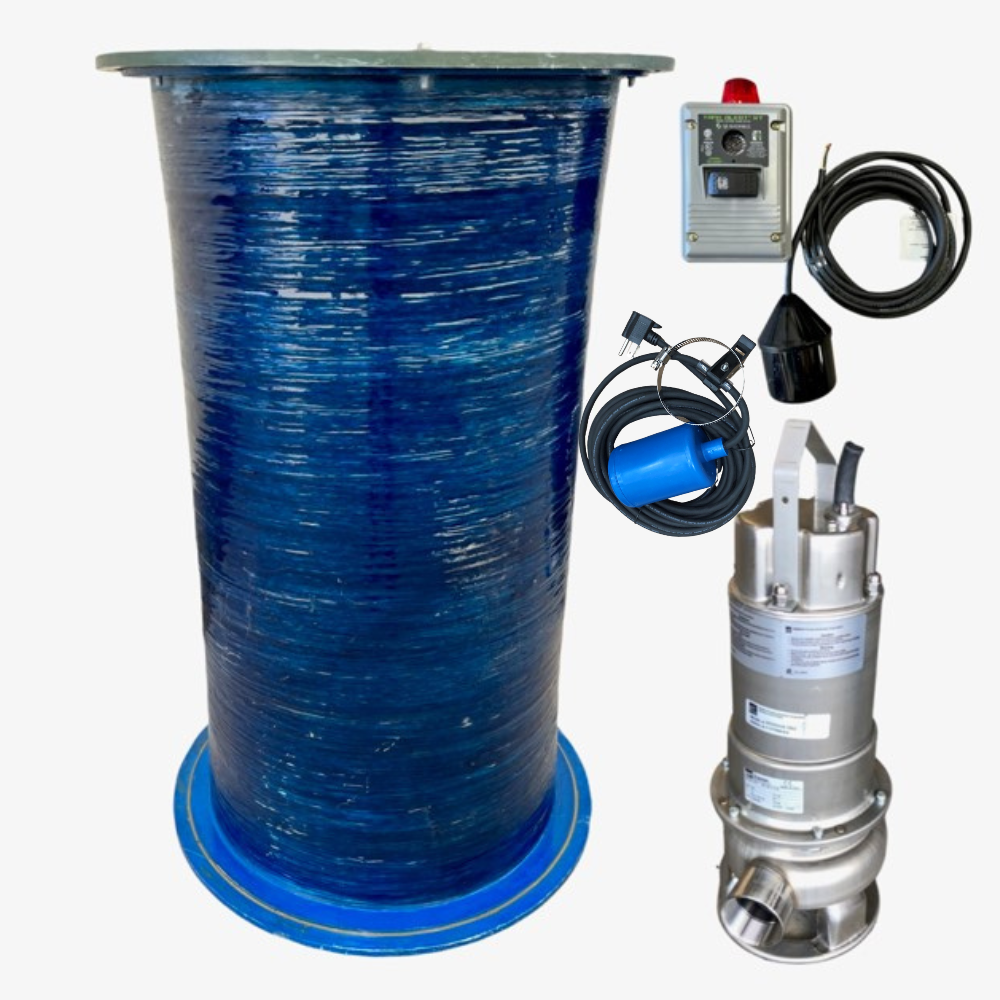

2' x 4' 1/2 hp Simplex Solids Handling Vortex Pump Station

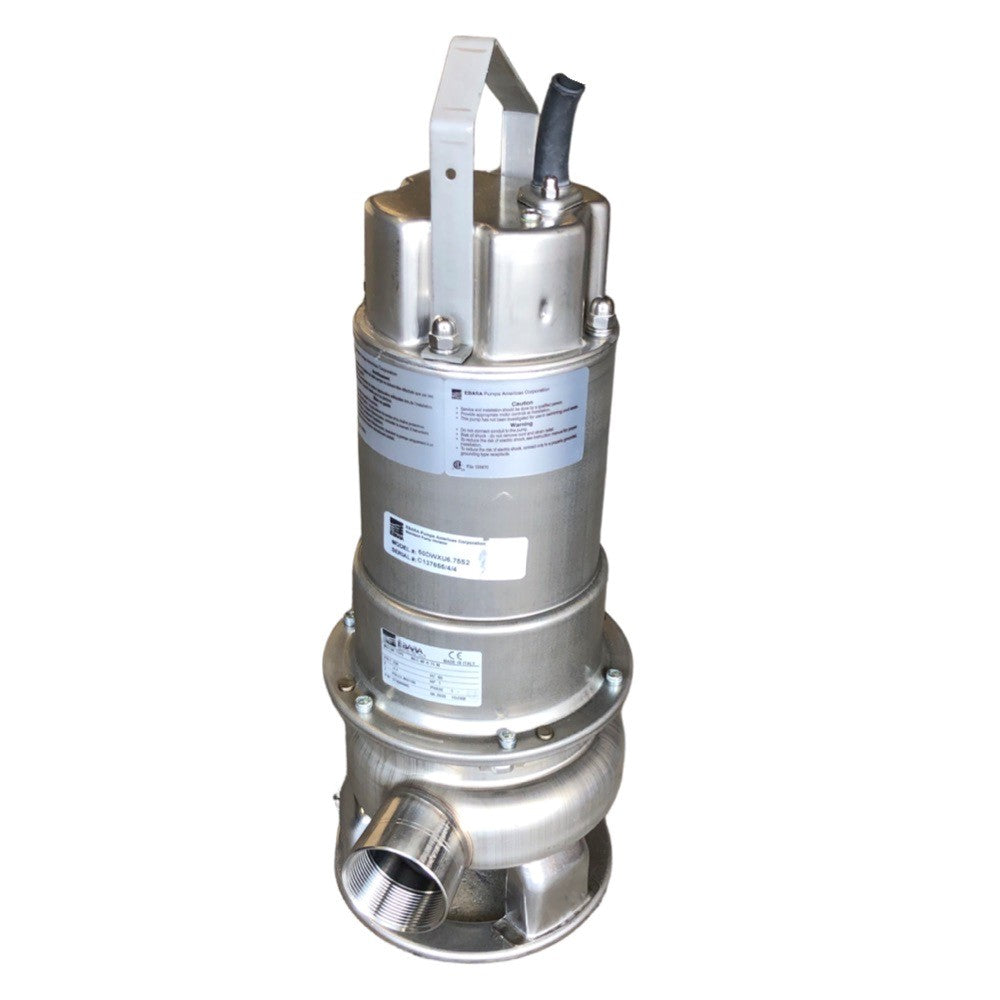

Features Ebara 50DWXU pump. The pump is constructed of high-quality, corrosion-resistant 304 stainless steel and uses a vortex impeller.

Pump specifications:

• Discharge Size: 2″ (NPT)
• HP: 1/2
• Voltage 115v, 1ph

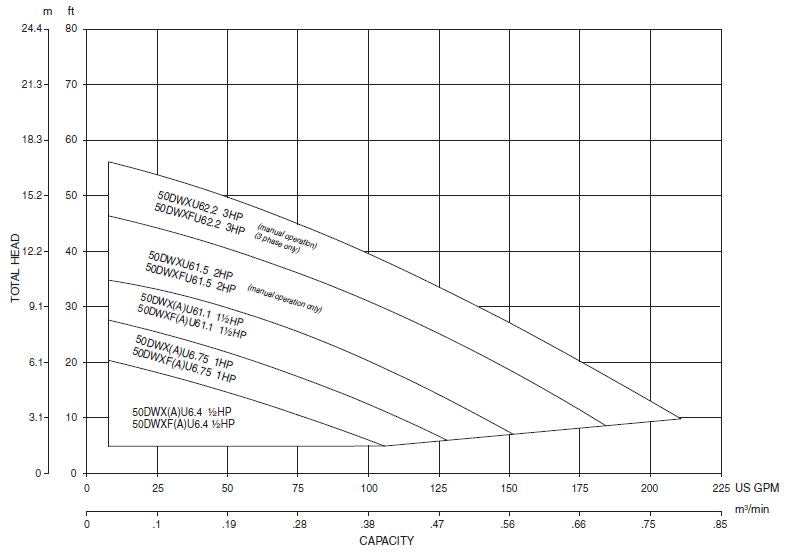

• Capacity: 10-110 GPM
• Head: 21.5-4 Ft.
• Max. liquid temperature: 104°F (40°C)
• Max. solid diameter: 2″

Solid fiberglass cover

Pre-cut internal piping (2" schedule 80 PVC), brass gate valve, heavy-duty check valve, 2" electrical conduit

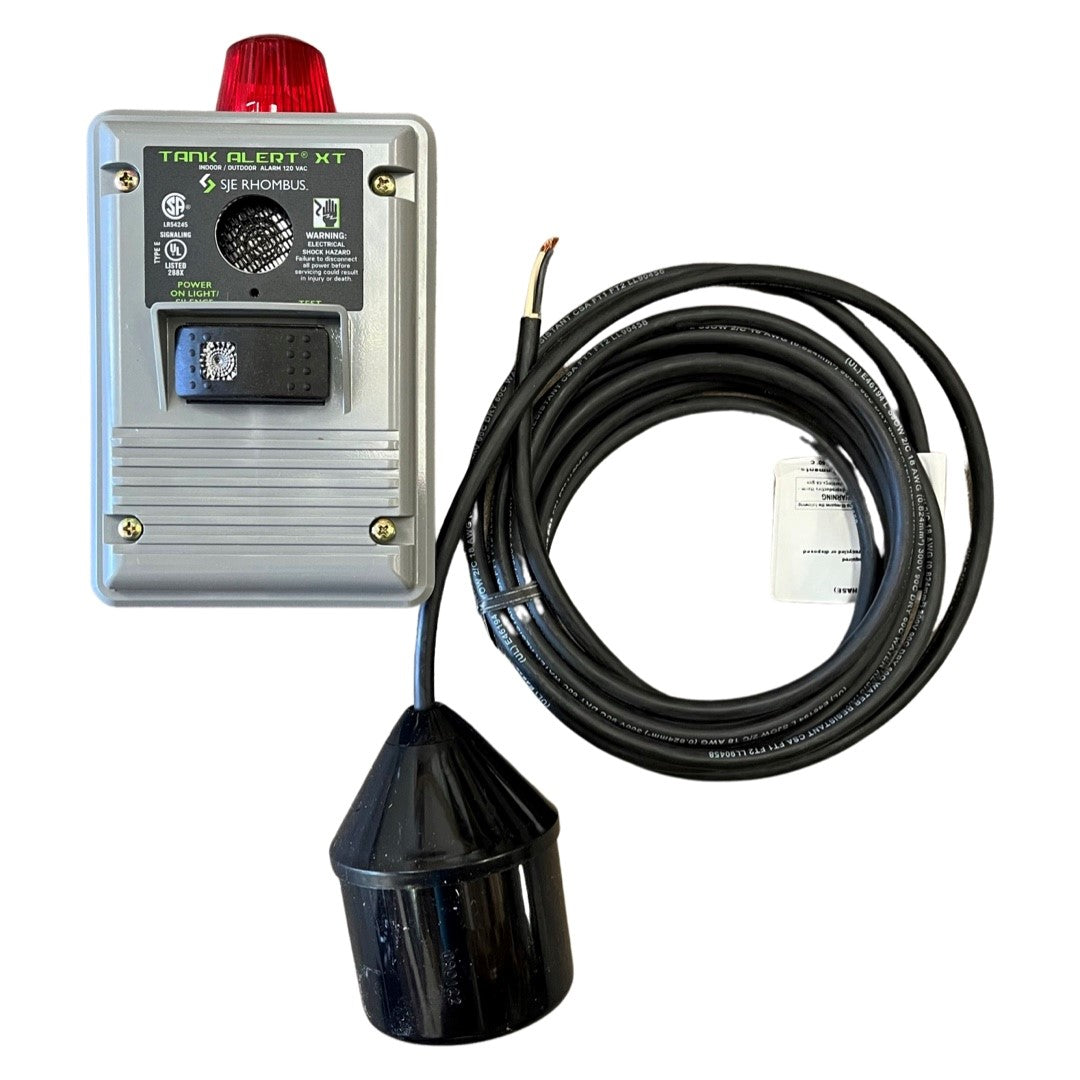

SJE Rhombus115v alarm panel (unmounted)

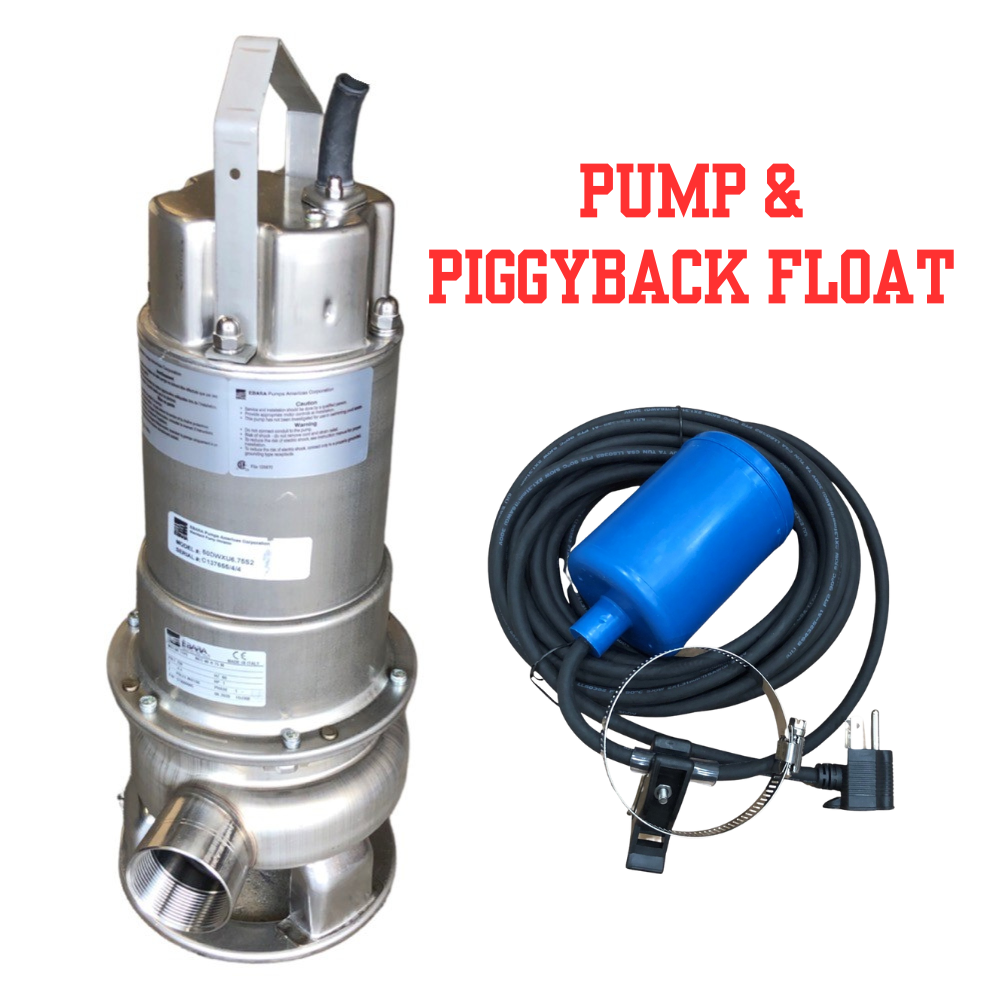

High water alarm float switch and piggyback on float switch

Epoxy kit provided to field install inlet pipe.

Minimal field assembly is required.

Download specifications and submittal data for free here.

Ships free via freight on a pallet to a loading dock. Please message us for a lift-gate service quote.
