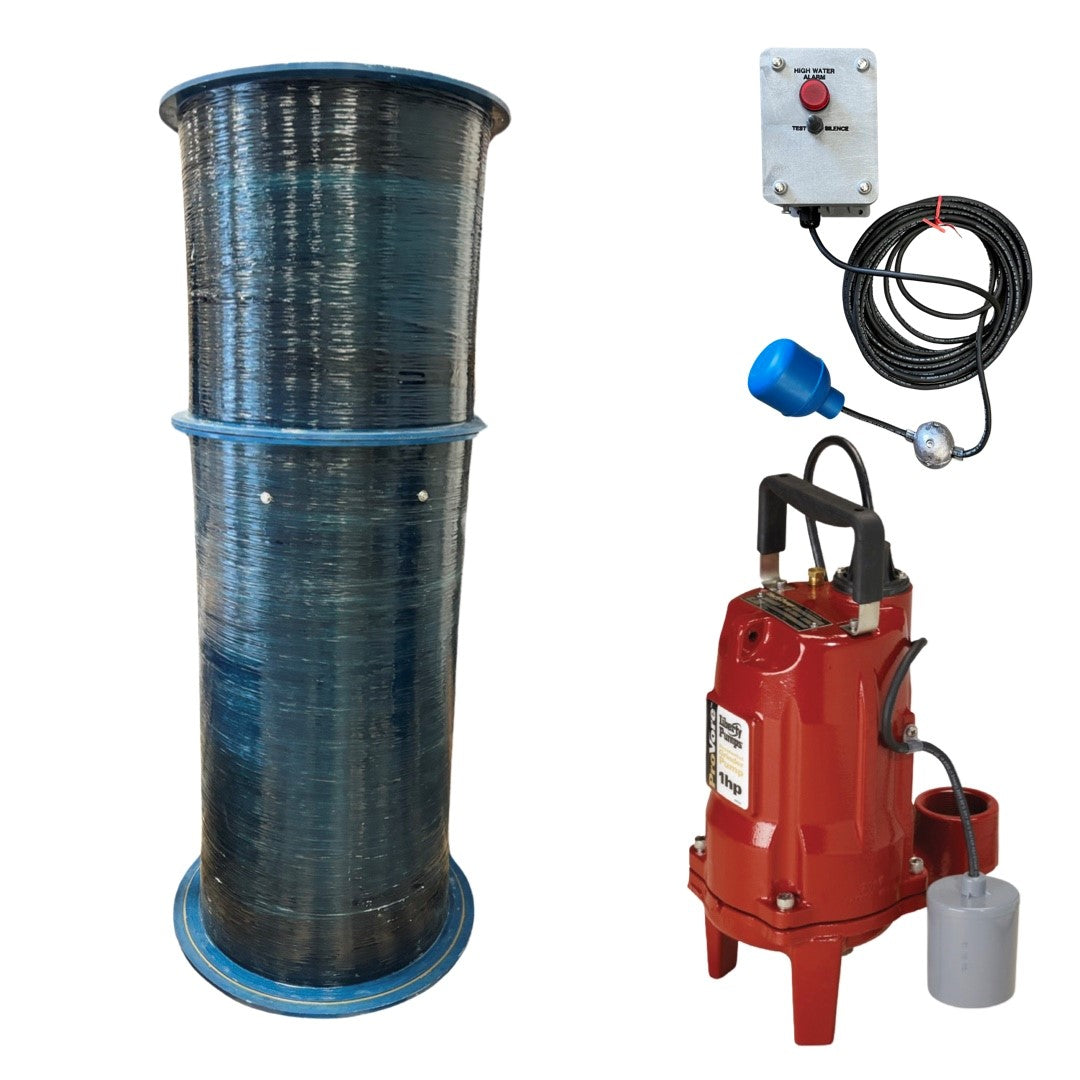

2' x 6' 1hp Simplex Grinder Pump Residential Sewage Lift Station

Features Liberty PRG101A-2 Omnivore Grinder Pump with new V-Slice Cutter Technology: Recessed cutter bolt eliminates wadding and exclusion cleanout slots clears debris from under the cutter. Provides superior cutting with improved shredding performance over radial cutters. The V-pattern cutter provides up to 108 alternate cuts per revolution.

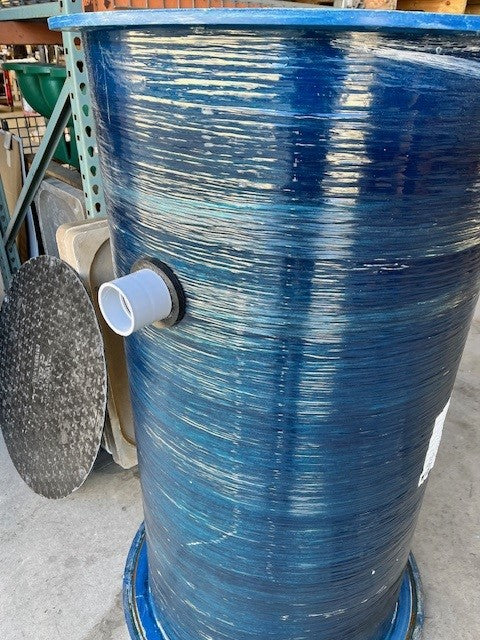

2' x 4' tank with 24" extension for a total of 6'

Solid fiberglass cover

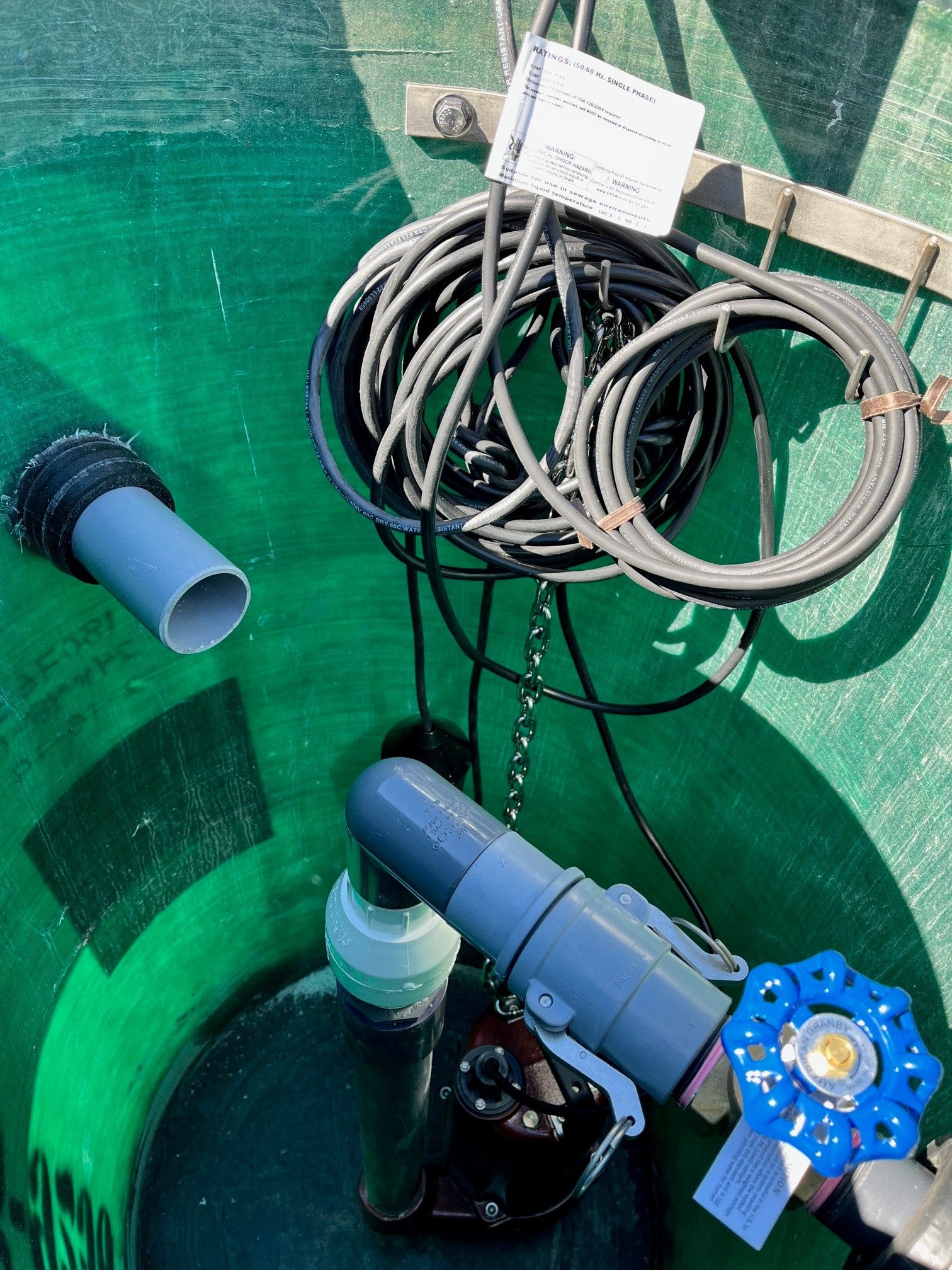

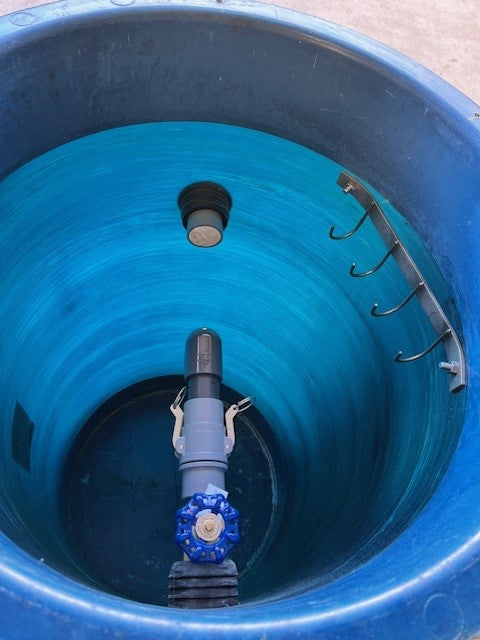

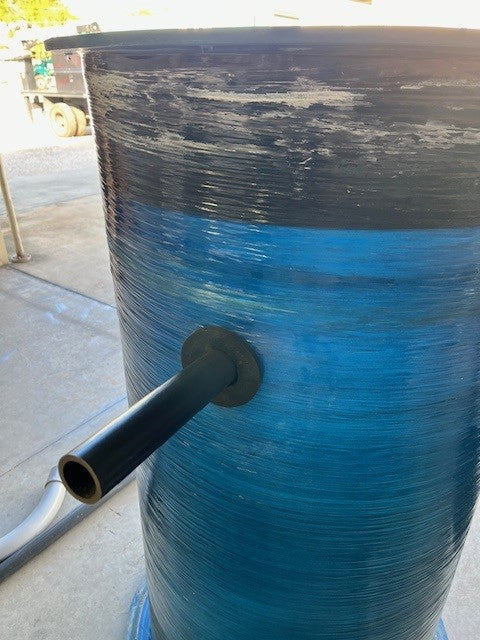

Pre-cut internal piping (1-1/4" schedule 80 PVC), brass gate valve, heavy-duty check valve, 2" electrical conduit  2" inlet

Anchor Scientific 115v alarm panel (unmounted)

2 float system - High water alarm float and on pump float switch

Epoxy kit provided to field install inlet pipe.

Minimal field assembly is required. 1-1/4" pipe provided to be cut/installed between pump and valve. 115v power to the alarm box (not provided) needs to be attached in the field.

Download specifications and submittal data for free here.

Ships free via freight on a pallet to a loading dock. Please message us for a lift-gate service quote.
