Duplex Lift Station Panel
2HP 230V 1 Phase Grinder Duplex Pump Station Control Panel 300GR2
Lift station panel
2HP 230V 1 Phase Grinder Duplex Pump Station Control Panel 300GR2

2HP 230V 1 Phase Grinder Duplex Pump Station Control Panel 300GR2

Regular price $1,540.00
Unit price  per
Shipping calculated at checkout.

Stock Item- Ships in 1-3 Days

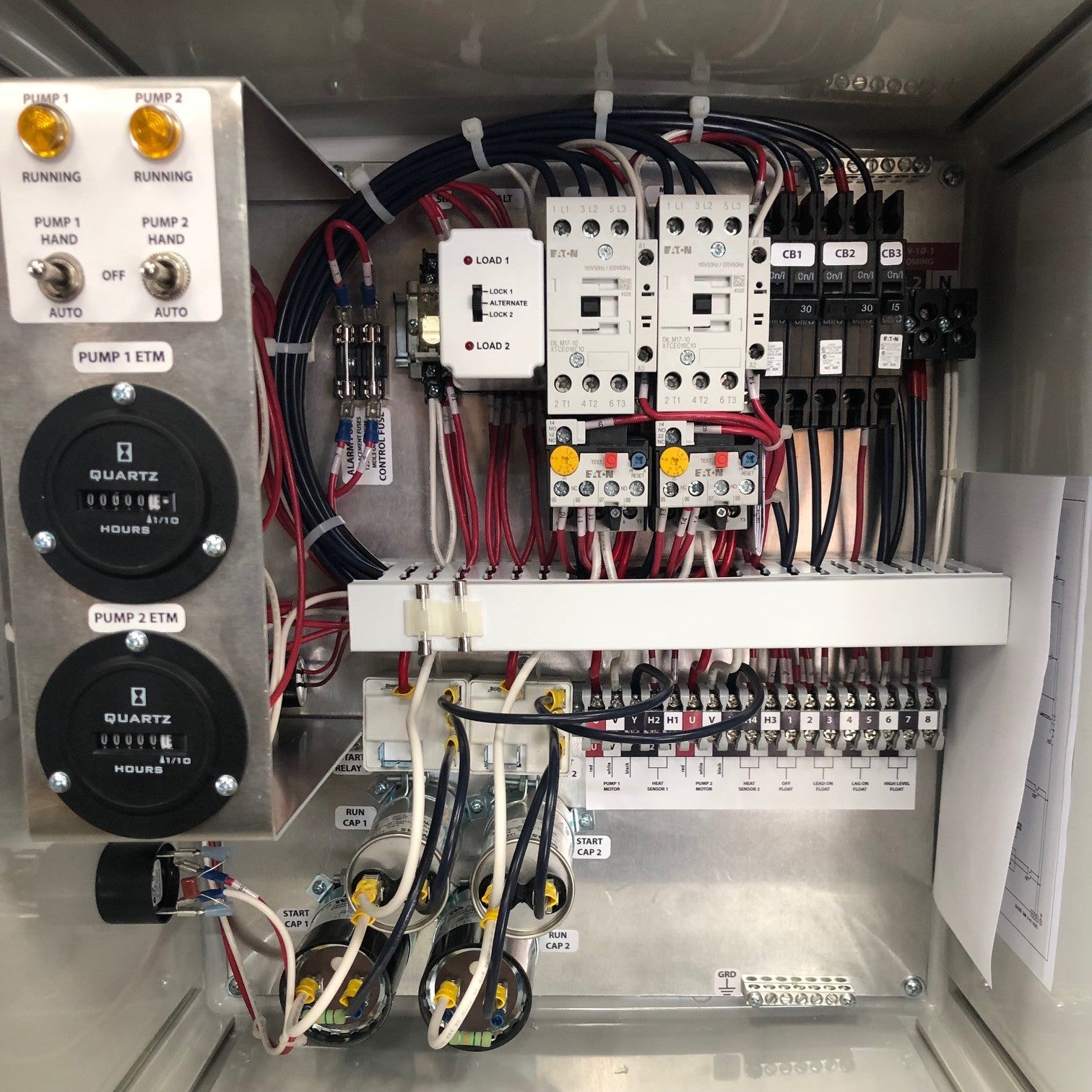

DUPLEX 2HP 230V 1PHASE GRINDER pump station control panel

w/ included cap kit

4 sensor float level control (sensor floats sold separately)

***This panel includes a single phase module to accommodate Ebara DG grinder pumps.  Customer may need to remove or modify these components if pump brand differs***

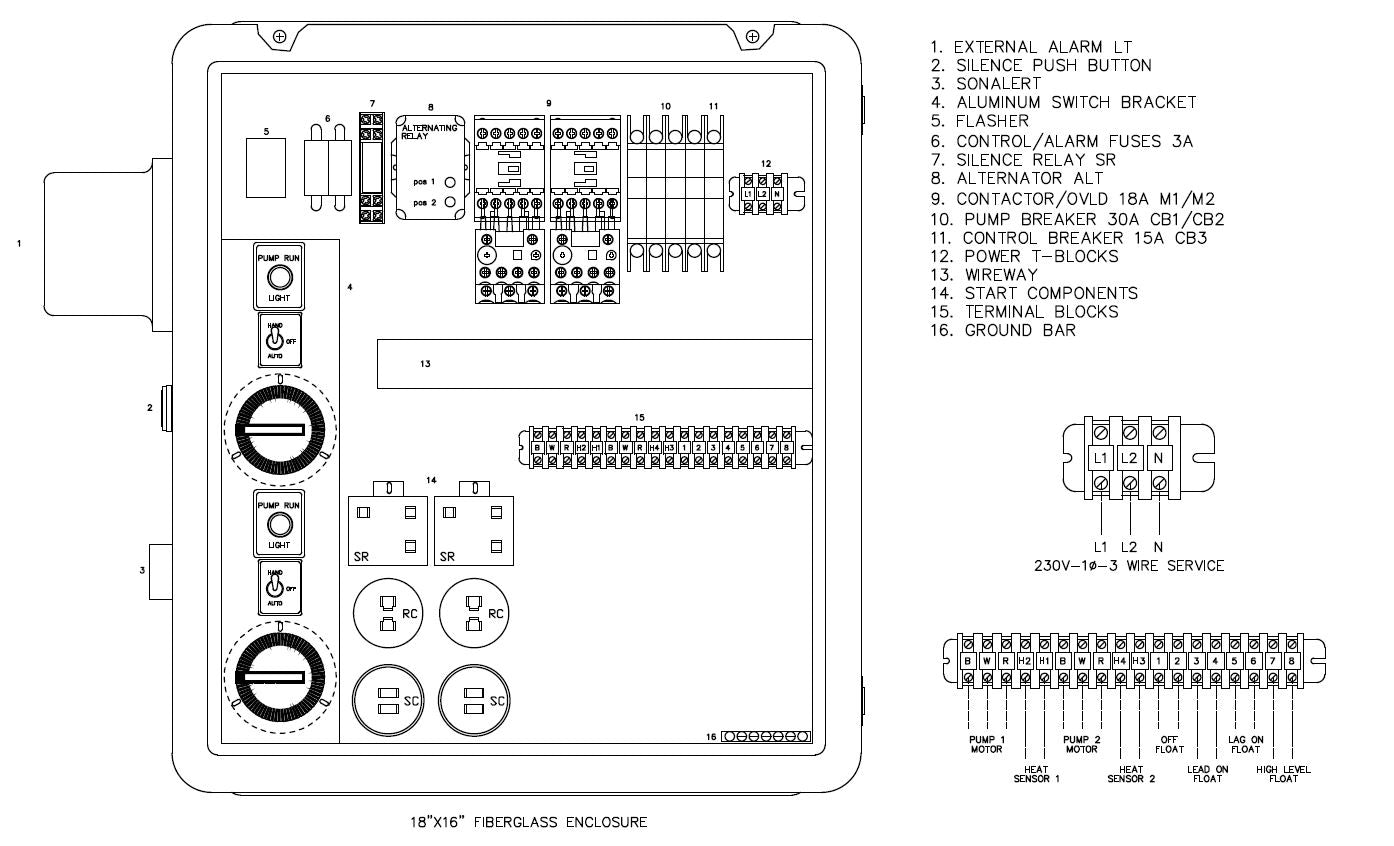

  • External Alarm Light
  • Silence Push Button
  • Sonalert
  • Aluminum Switch Bracket
  • Flasher
  • Silence Relay
  • Control / Alarm Fuses

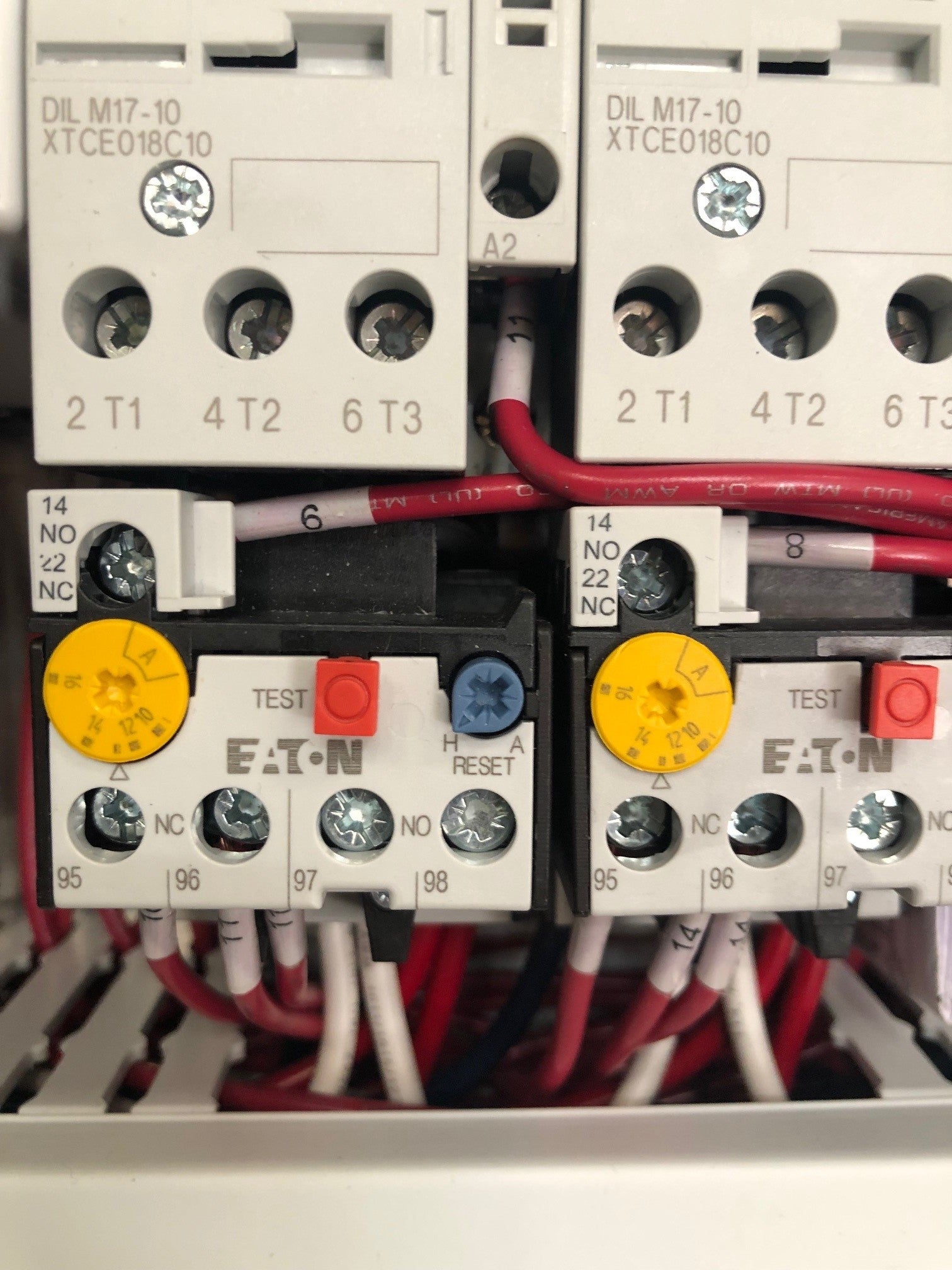

  • Contactor/Overload 10A-18AM1/M2
  • Pump Breaker 30A SB1/CB2
  • Control Breaker 15A
  • Power Block
  • Wireway
  • Terminal Blocks
  • Ground Bar
  • Alternator Alt
