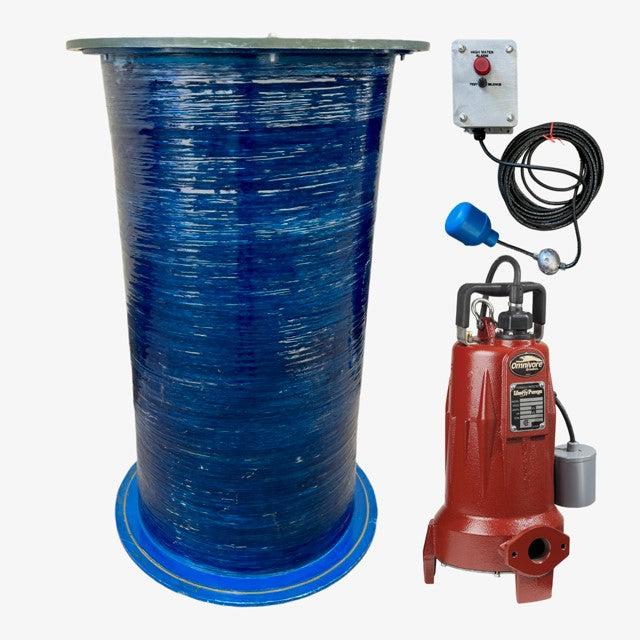

2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station
2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station
2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station
2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station
2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station
2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station

2' x 4' 2hp High Head LSGX202A Simplex Grinder Pump Sewage Lift Station

Regular price $4,266.10
Unit price  per
Shipping calculated at checkout.

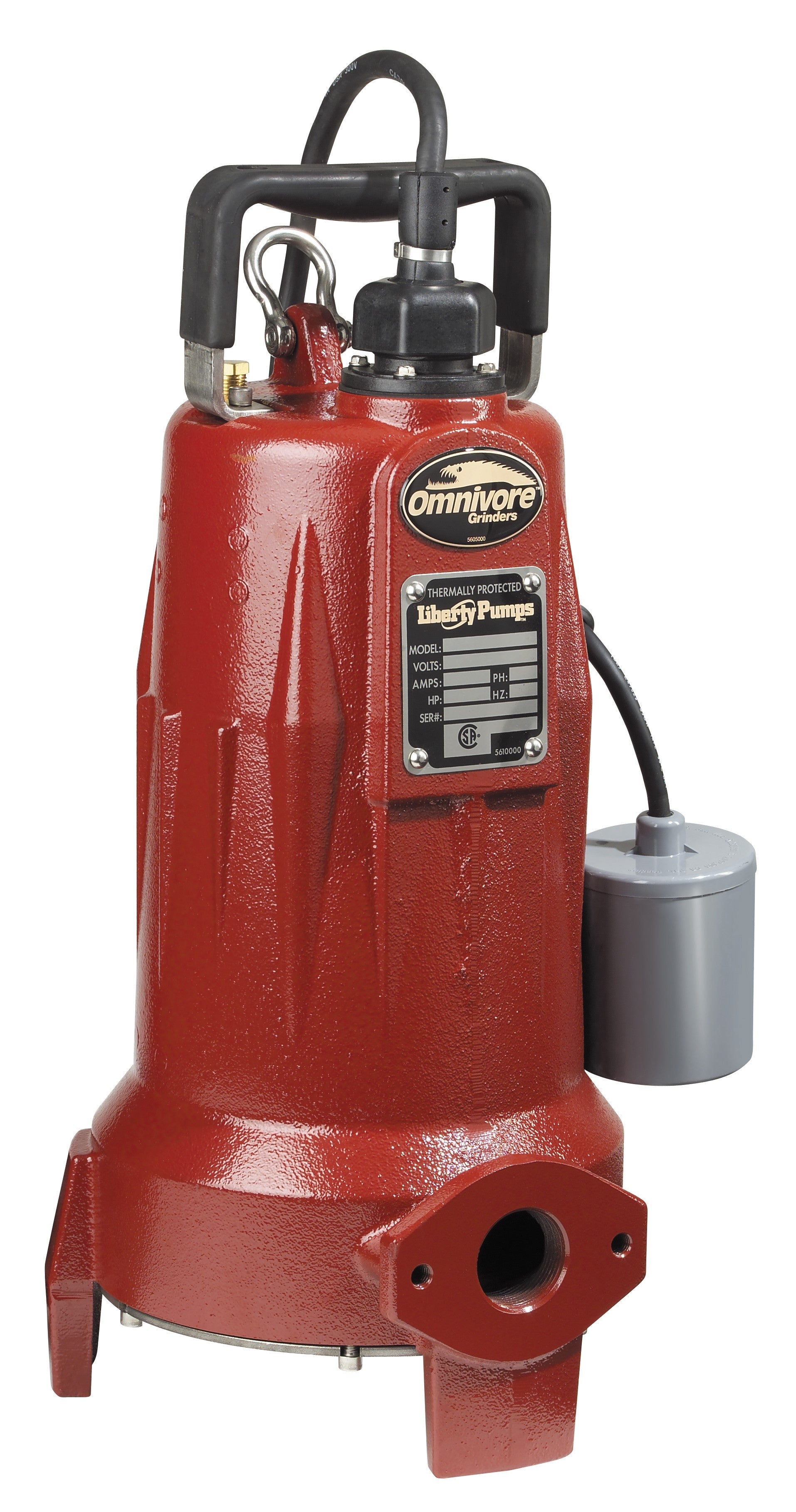

Features Liberty LSGX202A Omnivore Grinder Pump with new V-Slice Cutter Technology: Recessed cutter bolt eliminates wadding and exclusion cleanout slots clears debris from under the cutter. Provides superior cutting with improved shredding performance over radial cutters. The V-pattern cutter provides up to 108 alternate cuts per revolution.

Solid fiberglass cover

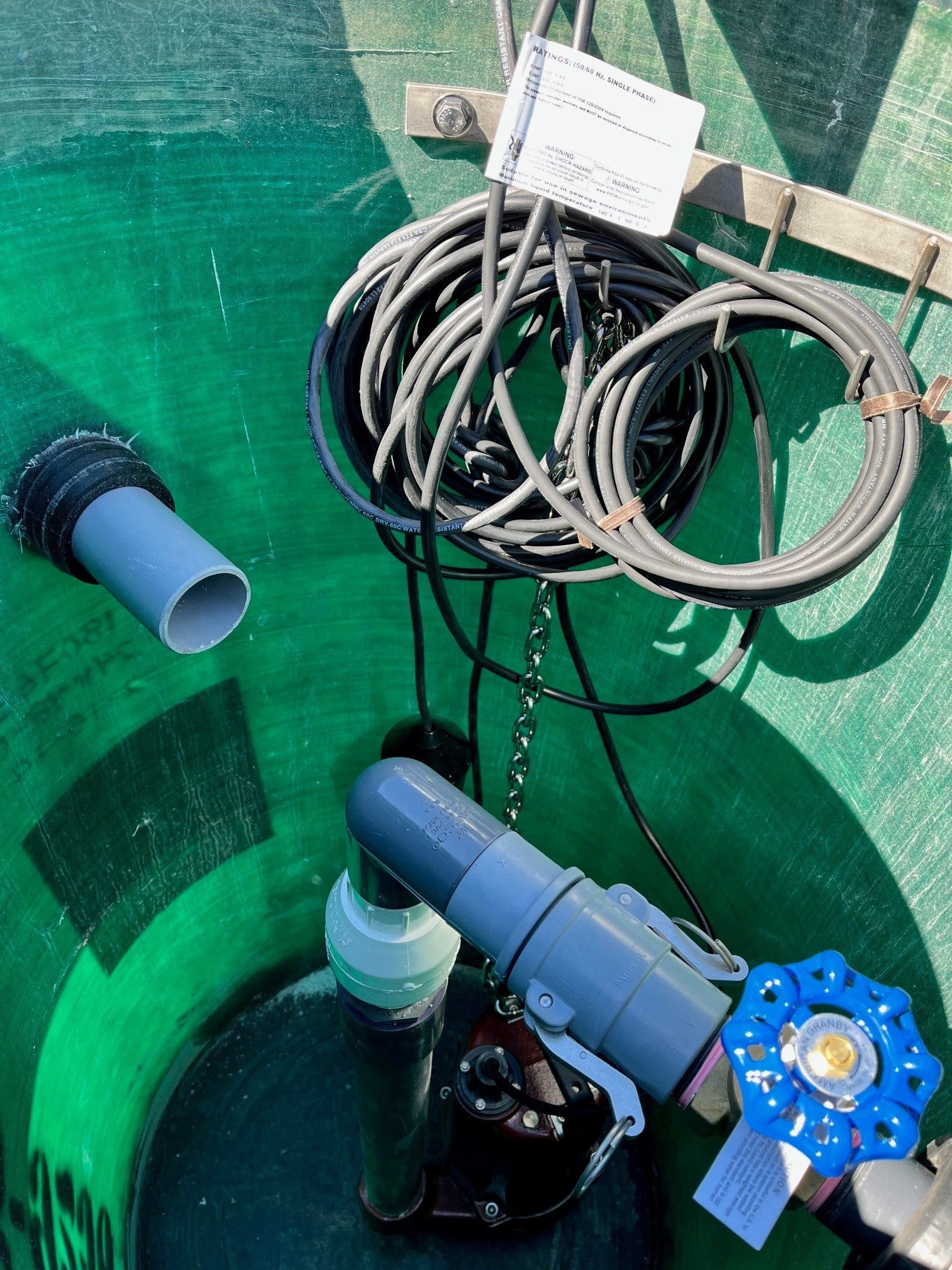

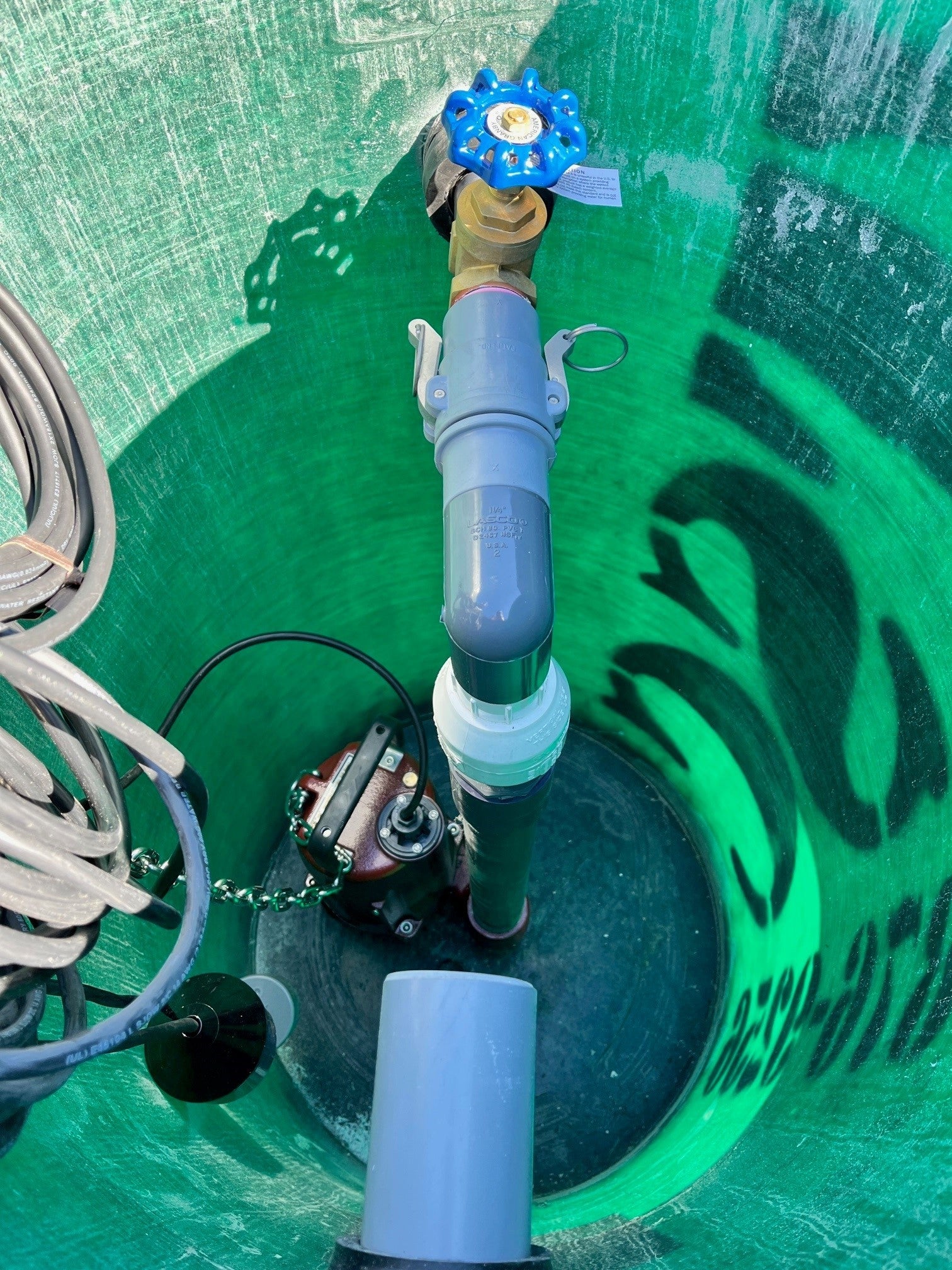

Pre-cut internal piping (1-1/4" schedule 80 PVC), brass gate valve, heavy-duty check valve, 2" electrical conduit  2" inlet

2hp high head 230/208v 1ph pump with plug

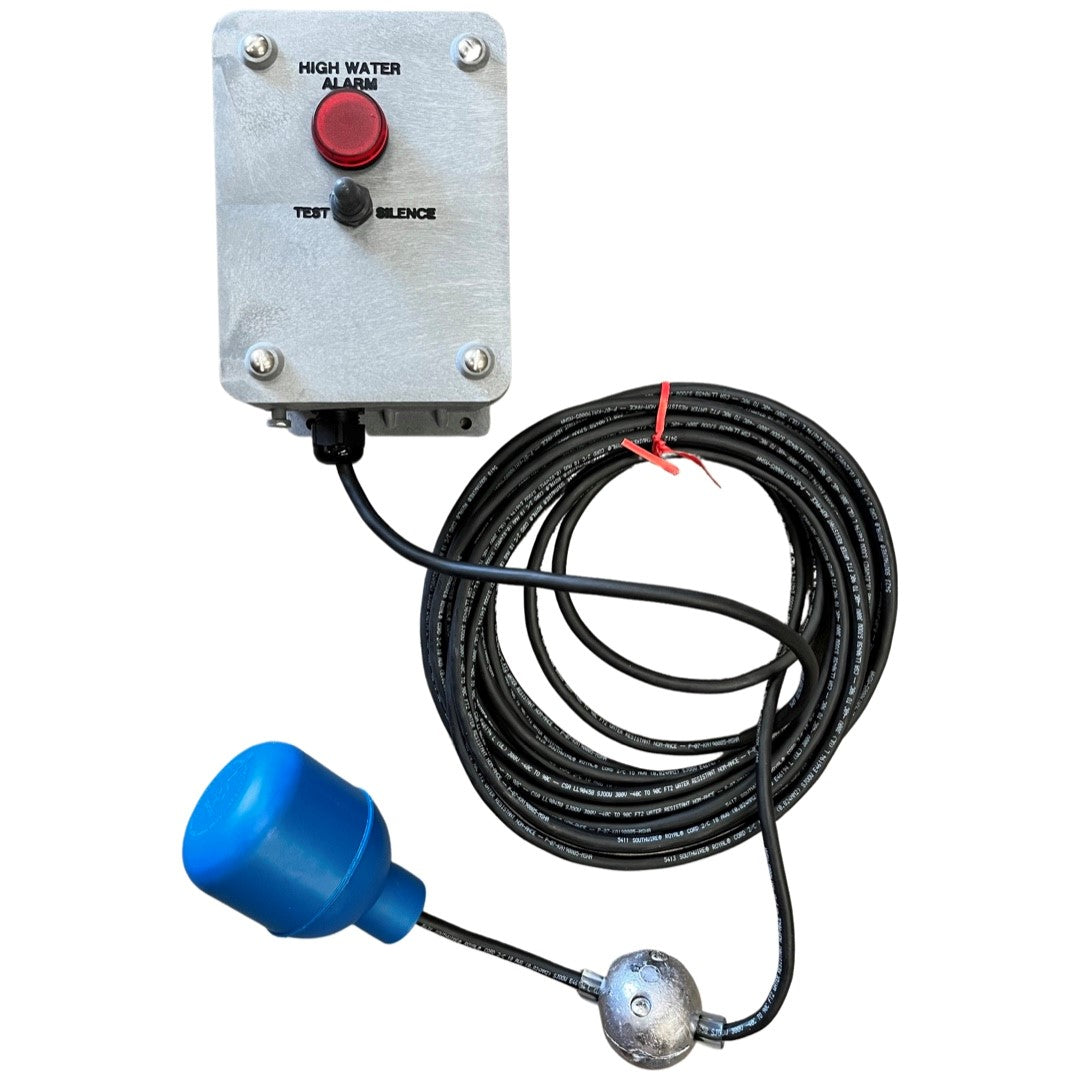

115v alarm panel (unmounted)

High water alarm float

Epoxy kit provided to field install inlet pipe.

Minimal field assembly is required. 1-1/4" pipe provided to be cut/installed between pump and valve. 115v power to the alarm box (not provided) needs to be attached in the field.

Download specifications and submittal data for free, here.

Ships free via freight on a pallet to a loading dock. Please message us for a lift-gate service quote.
