Liberty Pumps

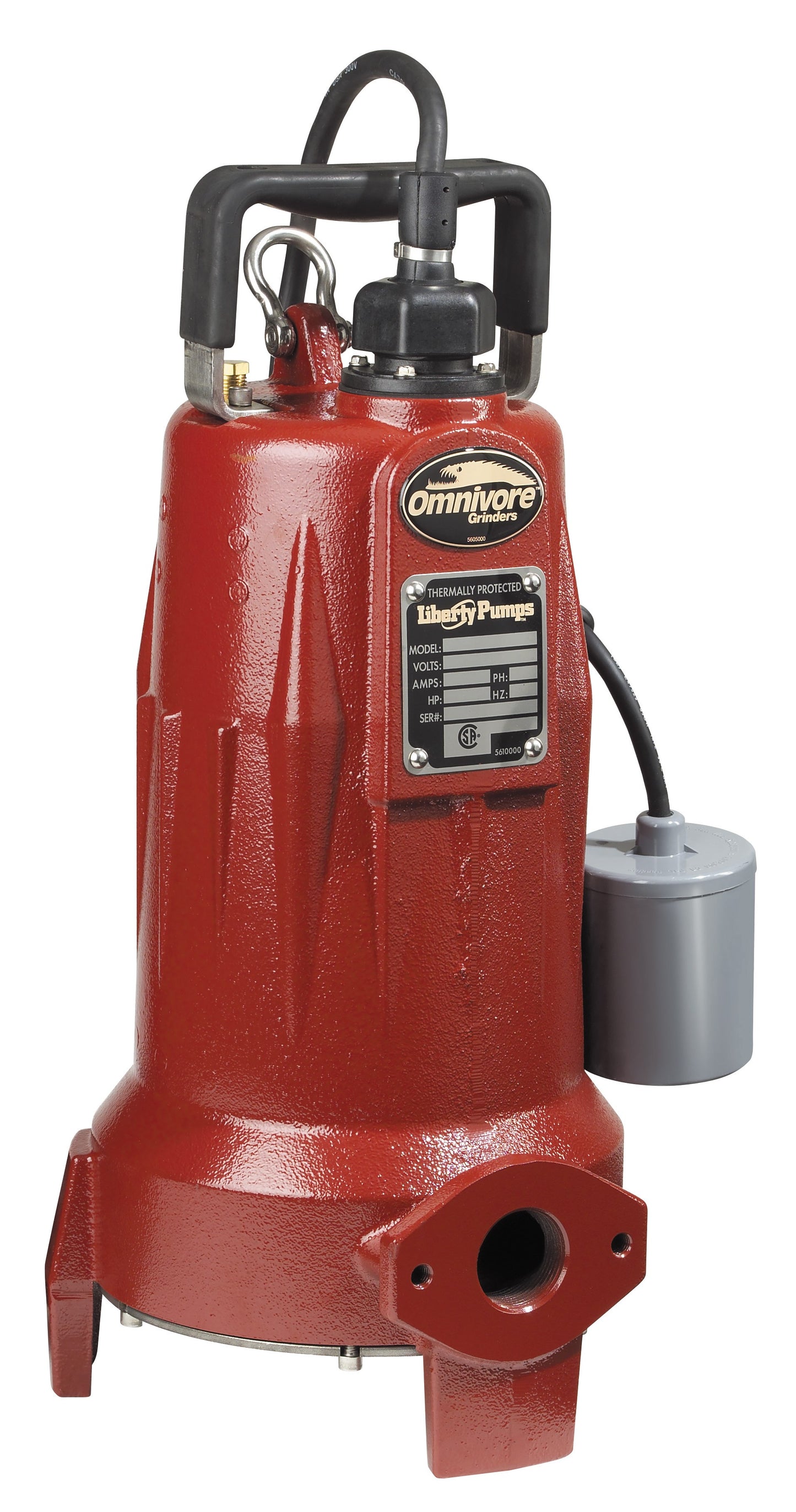

Liberty 2HP LSGX202A Omnivore 1-1/4" Auto 2-Stage High Head Grinder Pump 230v 1Phase

Liberty 2HP LSGX202A Omnivore 1-1/4" Auto 2-Stage High Head Grinder Pump 230v 1Phase

$2,639.00 USD
$3,865.00 USD $2,639.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Item- Ships in 1-3 Days

2 hp
1-1/4" Discharge

Automatic wide angle piggyback float switch

208/230V 1Phase

Liberty’s 2-stage LSGX-Series Omnivore® grinders meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial. The LSGX features patented V-Slice® cutter technology. This superior cutting system, made of 440 hardened stainless steel, shears rags, jeans, wipes, diapers, sanitary napkins and other debris into a fine slurry. The 2-stage design provides higher-pressure with maximum head capabilities to 185 feet. This performance allows installation of a centrifugal grinder where only progressive cavity designs were previously used in LPS systems. Applications include individual or groups of homes, motels, schools, shopping centers, lakefront developments and systems requiring pressure pumping of waste.


Features:

  • 2HP, heavy-duty motor - oil filled
  • Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C  58
  • Internal capacitor
  • Upper and lower ball bearings
  • One-piece uni-body cast iron housing
  • 300 Series SS Rotor Shaft
  • 316 Stainless steel impeller
  • Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal)
  • Motor windings insulated to Class B (265°F)
  • New Patented V-Slice cutter technology
  • Horizontal 1-1/4" FNPT Discharge
  • Back vanes on impeller and spiraled bottom plate for superior solids clearing
  • All stainless steel fasteners
  • Clog-free volute design
  • Designed for maximum heat dissipation and cool motor operating temperatures
  • Solid state starting circuit - no mechanical relay coil
  • 25' power cord with Quick-Disconnect



Pump curve and engineering info
