Duplex 5HP 230v 1ph DEP Lift Station Control Panel 30-40FLA

DEP Approved

Stock item

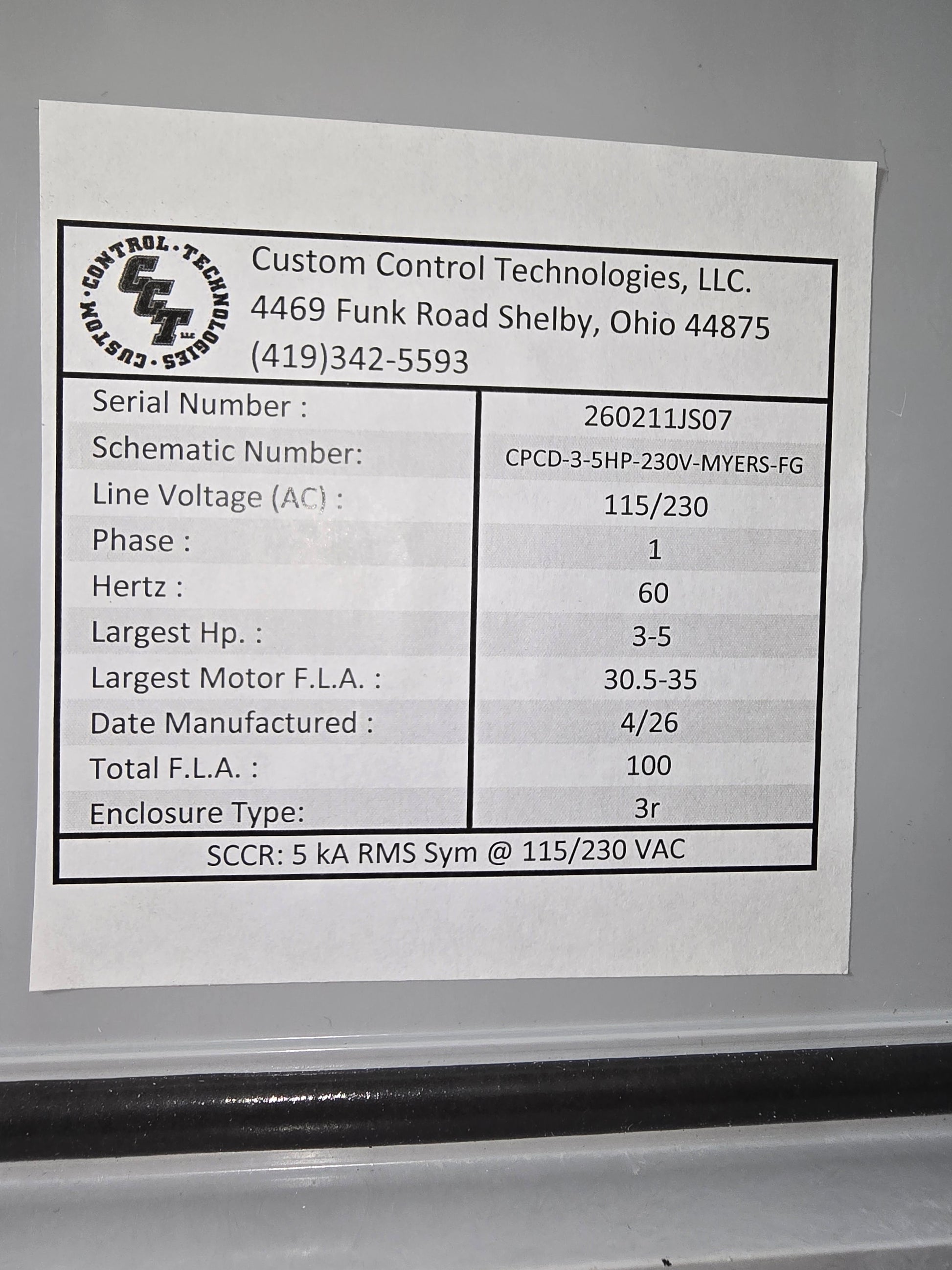

Voltage: 230v
Phase: 1Ø
Full Load Amps: 30-40A
Largest HP: 3-5HP
Enclosure type: NEMA 3r

Capacitors set up for 3-5HP Myers Grinder Pumps. Other pumps may use different start / run capacitors that end user would need to replace.

Ships via Freight on a pallet

DEP pump control panels are designed to make managing duplex pump stations simple and reliable. Built for systems with two submersible pumps, these panels help ensure smooth operation and peace of mind.

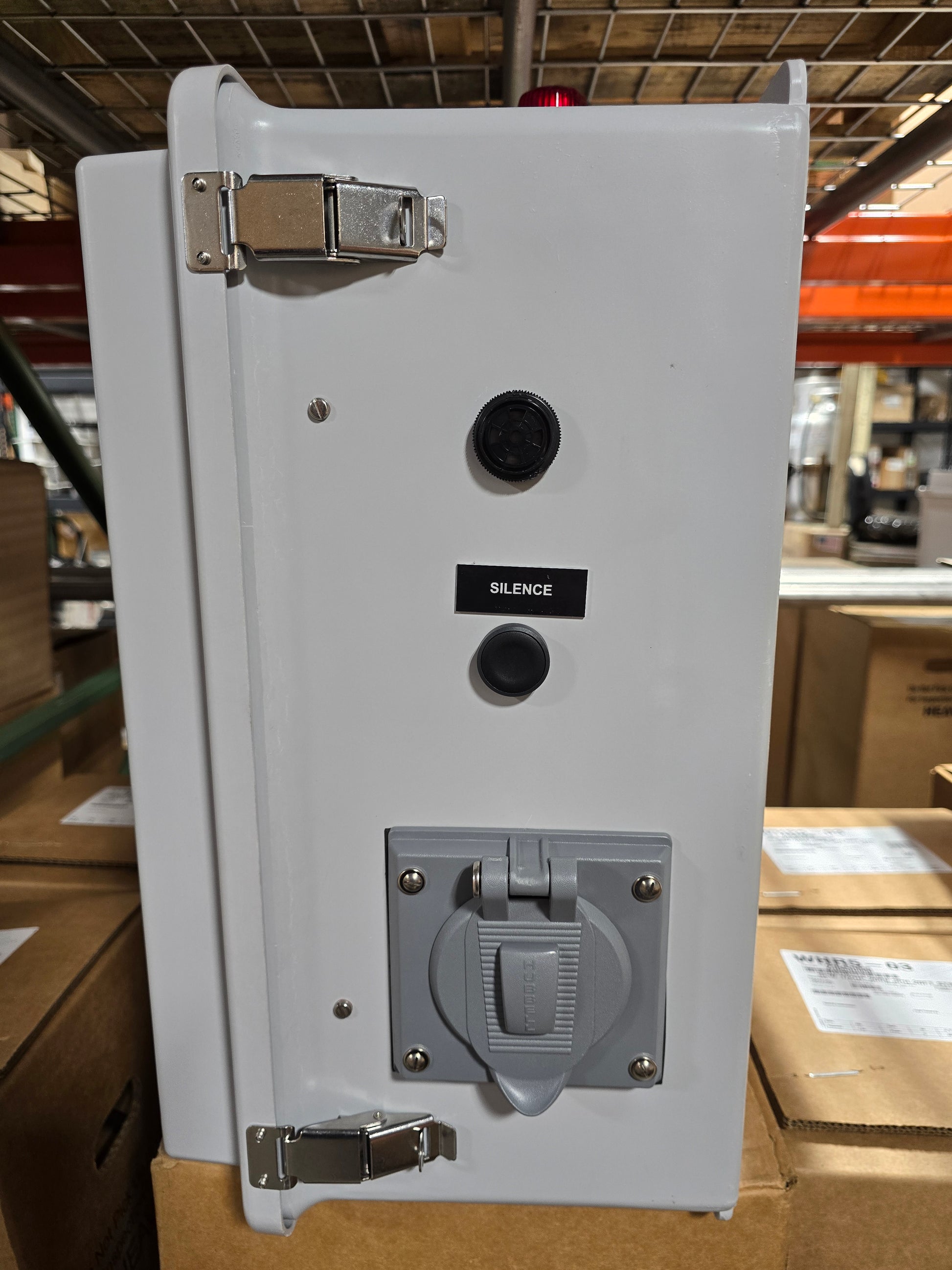

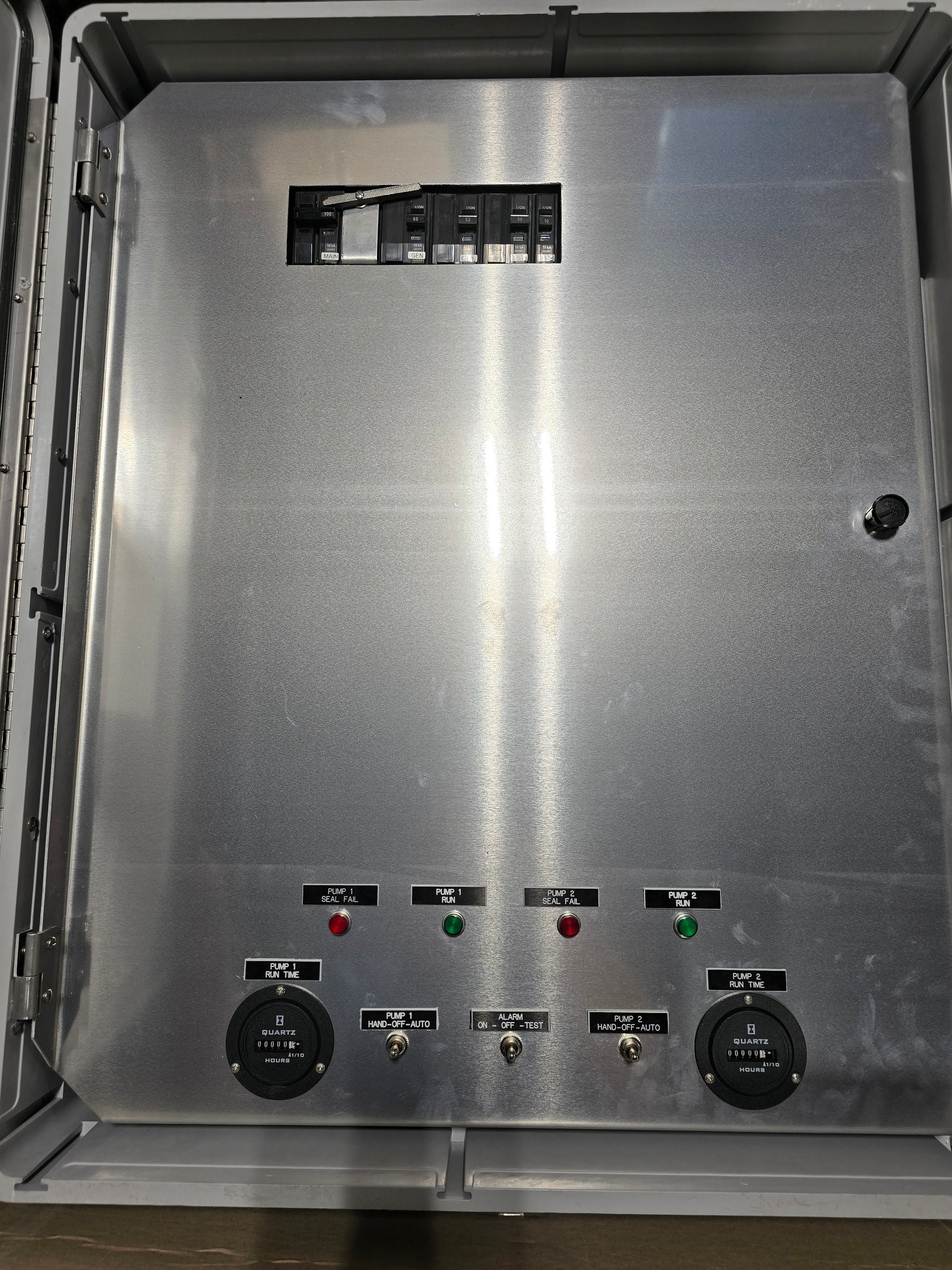

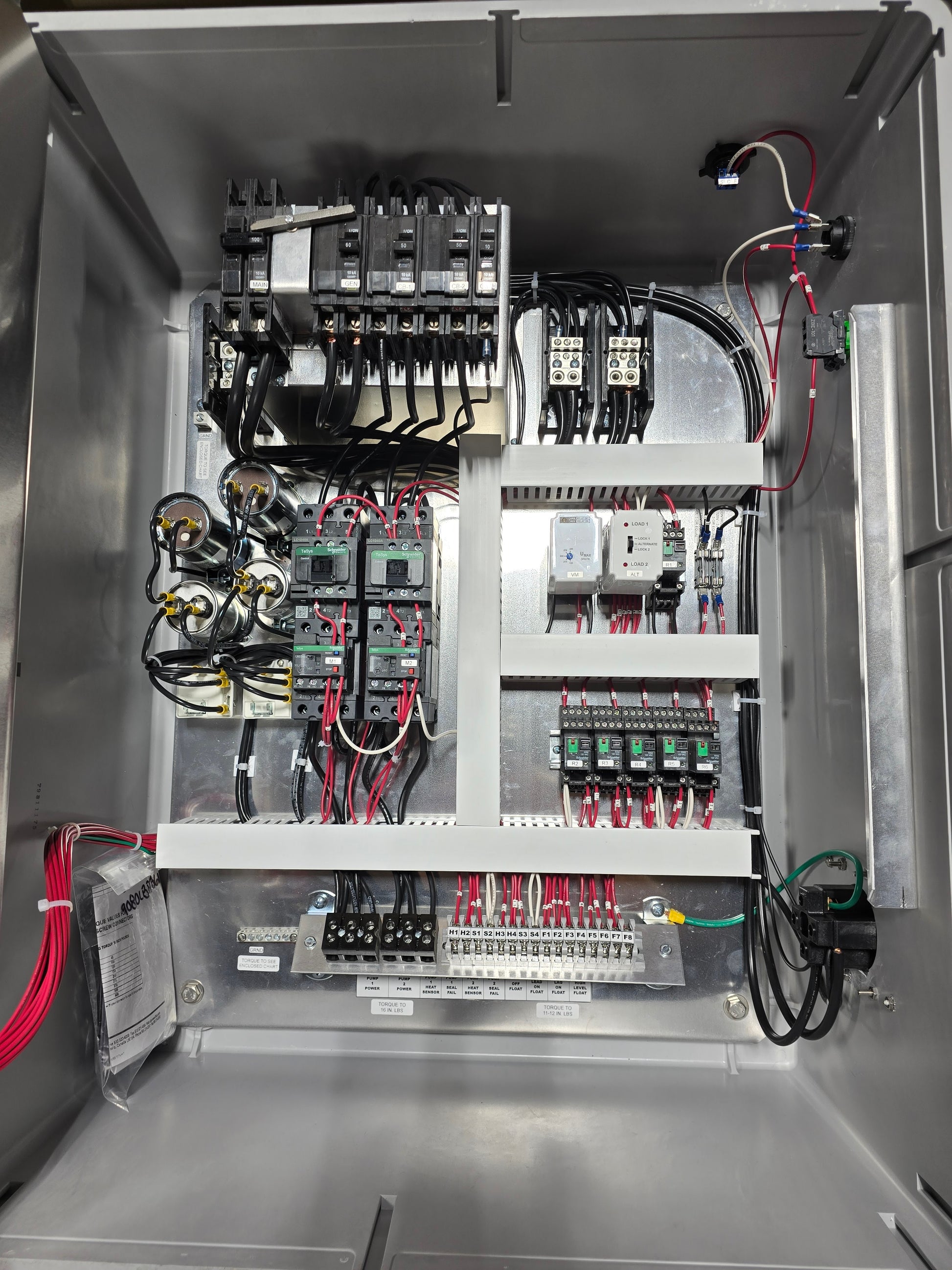

Each panel comes equipped with dedicated circuit breakers for both pumps, a high-water alarm to alert you of potential issues, generator receptacle and protective fuses for the alarm system. An automatic alternating relay is also included, which rotates pump operation each cycle—helping to balance wear and extend the life of your equipment.

With these features working together, DEP pump control panels provide dependable performance and easier system management.
