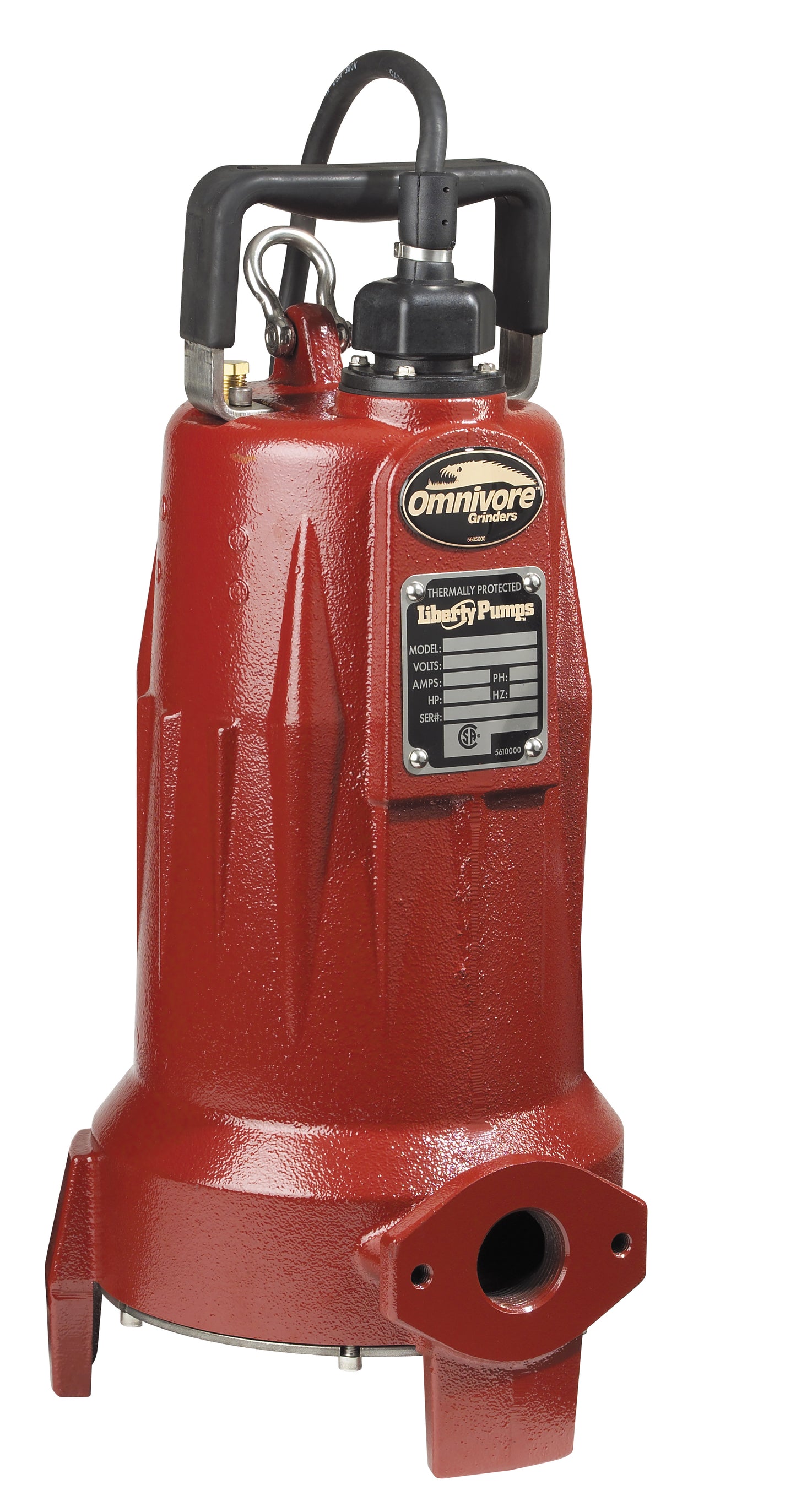

Liberty 2HP LSG203M Omnivore 1-1/4" Grinder Pump 230v 3Phase

Stock Item- Ships in 1-3 Days

Liberty Pumps LSG203M is a 2 HP 208-230v Manual Submersible Grinder Pump (3 Phase) with 25ft quick-disconnect power cord. Liberty's LSG200 Series Omnivore grinder pumps meet the demanding needs of commercial and residential sewage applications where difficult solids-handling ability is crucial.

The superior cutting system of the Liberty Grinder Pumps LSG203M provides improved shredding performance over radial cutters. V-pattern provides up to 108 alternated cuts per revolution. In addition, Liberty LSG-Series Grinder Pumps are designed for continuous underwater operation. Liberty LSG-Series Grinder Pumps are designed for continuous underwater operation. The Liberty LSG203M Grinder Pump features internal capacitors and does not require a separate control panel for operation.

Features:

• 2HP, heavy-duty motor - oil filled
• Advanced V-Slice cutting system made of hardened 440 stainless steel - Rockwell C  58
• Internal capacitor
• Upper and lower ball bearings
• One-piece uni-body cast iron housing
• 300 Series SS Rotor Shaft
• 316 Stainless steel impeller
• Dual seals - Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal)
• Motor windings insulated to Class B (265°F)
• New Patented V-Slice cutter technology
• Horizontal 1-1/4" FNPT Discharge
• Back vanes on impeller and spiraled bottom plate for superior solids clearing
• All stainless steel fasteners
• Clog-free volute design
• Designed for maximum heat dissipation and cool motor operating temperatures
• Solid state starting circuit - no mechanical relay coil
• 25' power cord with Quick-Disconnect

Pump curve and engineering info
