LINK-SEAL® LS-425-S (per link)
LINK-SEAL® LS-425-S (per link)
LINK-SEAL® LS-425-S (per link)
LINK-SEAL® LS-425-S (per link)

LINK-SEAL® LS-425-S (per link)

Regular price $20.14
Unit price  per
Shipping calculated at checkout.

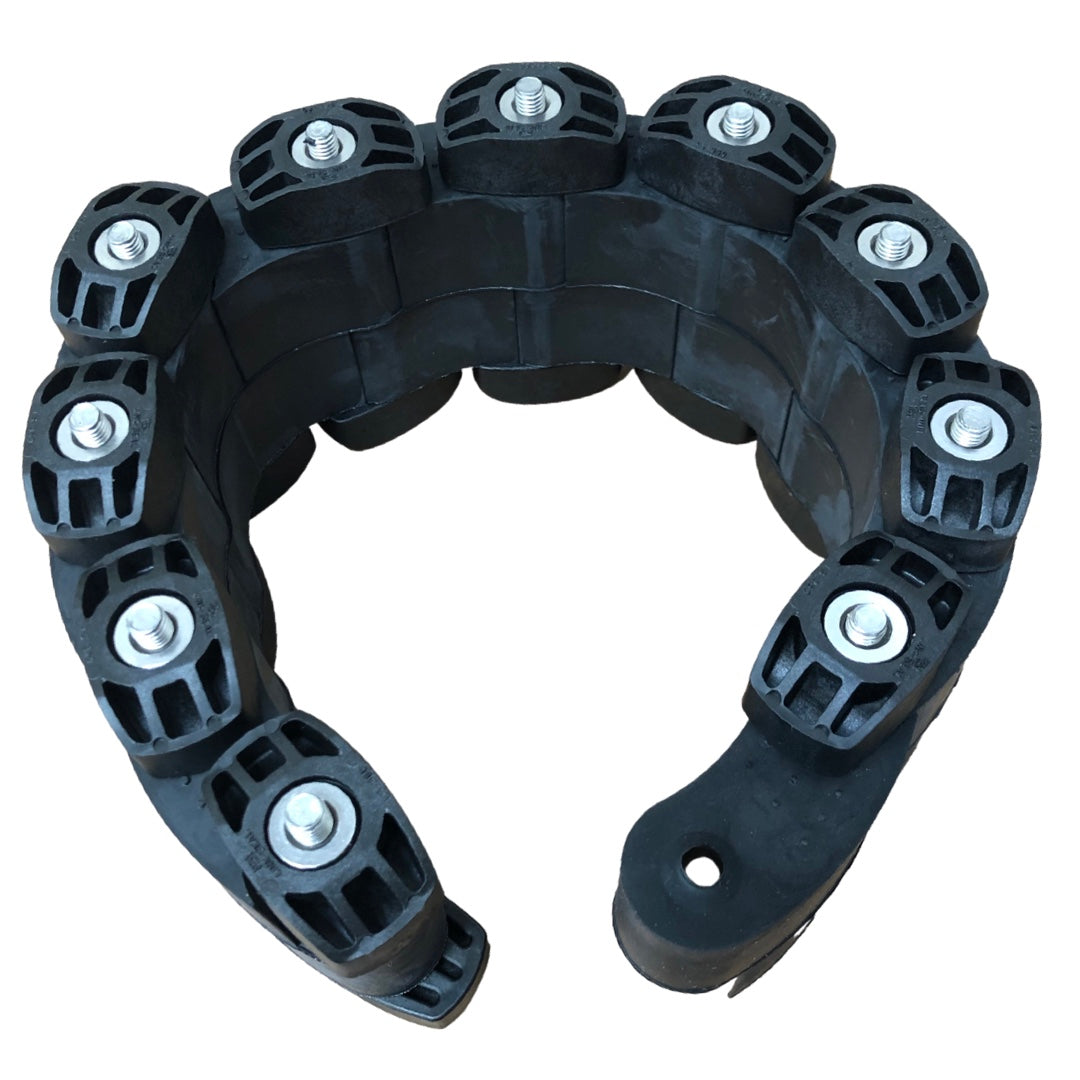

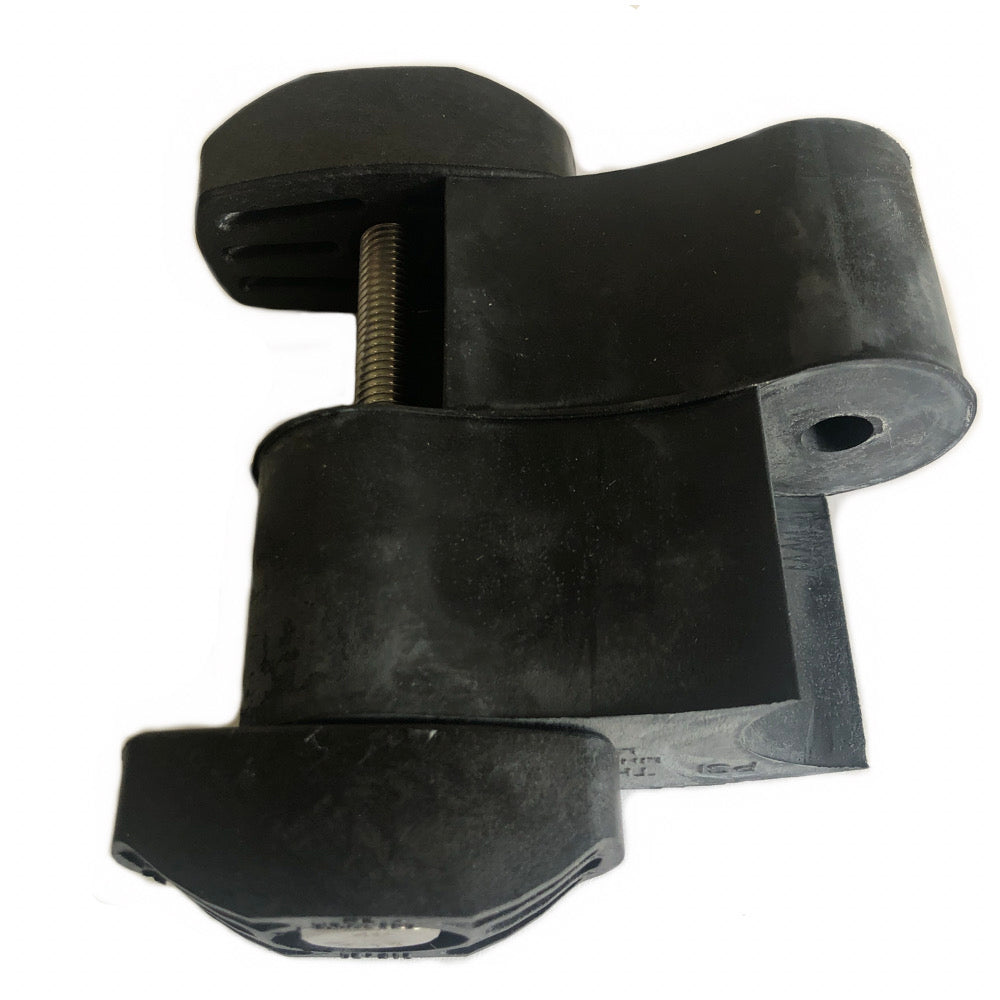

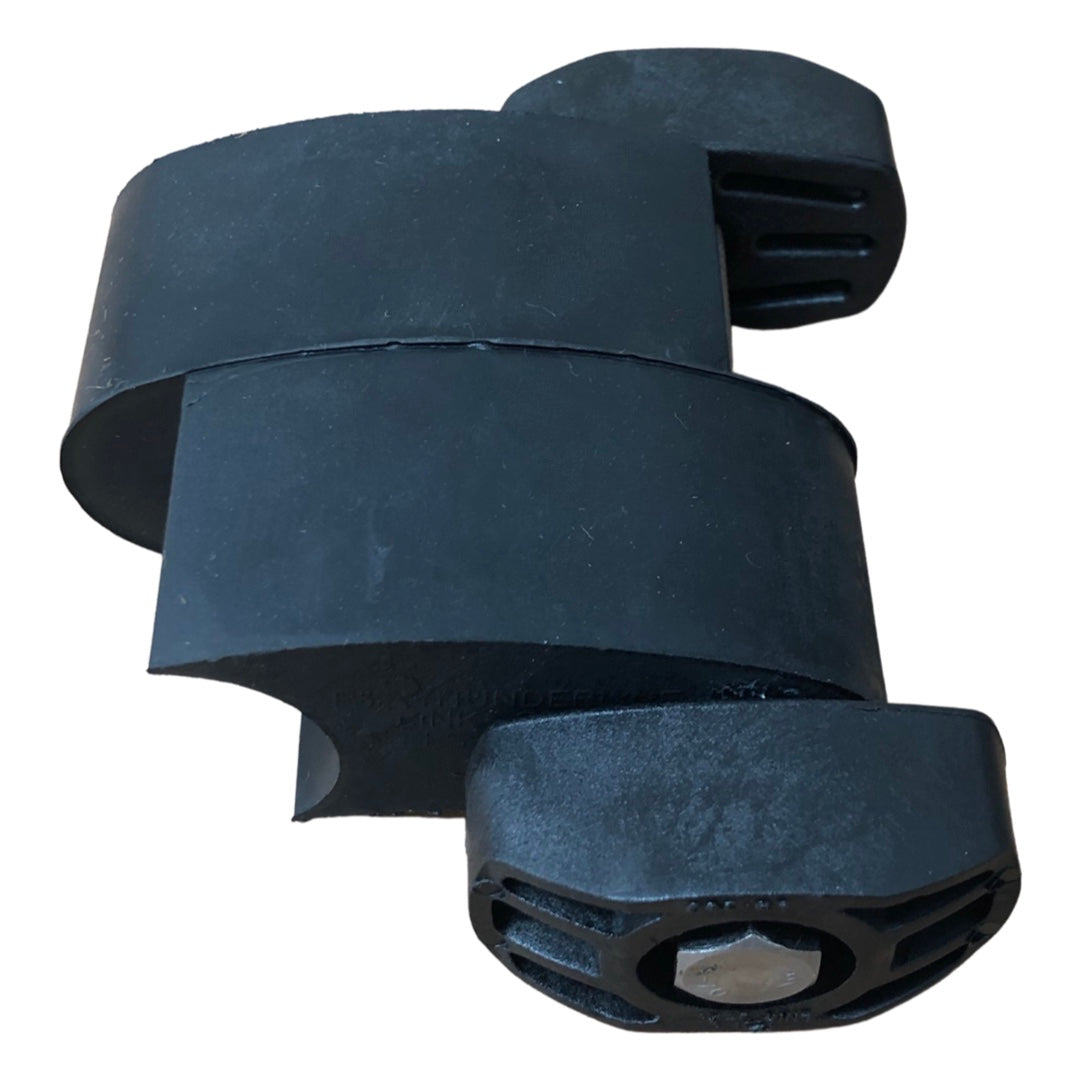

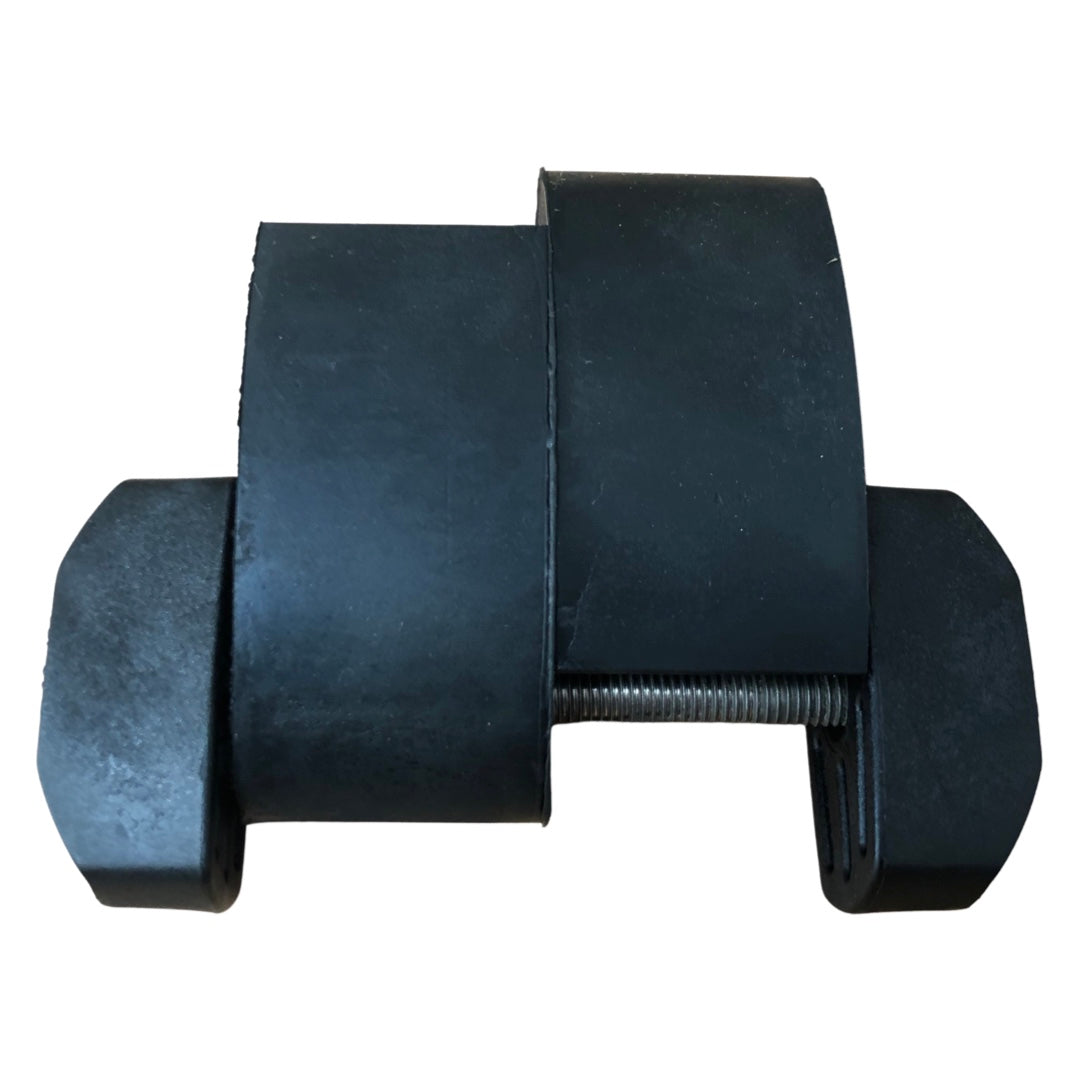

Stainless Steel, LS-425-S LINK-SEAL modular seals are designed to provide an easy, fast and affordable way to seal pipes of any size passing through walls, floors and ceilings. The S series comes standard with Stainless Steel nuts and bolts. Link Seal are made with a durable EPDM black rubber material and can handle temperatures that can reach up to 175 degrees F. These seals help to provide a positive hydrostatic seal, extends the life of the seal, saves time and money, protects against corrosion and is ISO approved.

FEATURES AND BENEFITS

  • Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
  • Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
  • Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.
  • Standard fasteners have a two-part zinc dichromate and proprietary corrosion inhibiting coating. Corrosion resistant 316 stainless steel available for maximum corrosion protection.
  • NSF 61 and Factory Mutual Fire Approved materials available. Also carry a wide variety of approvals from various Federal agencies, associations, code groups, laboratories, and organizations.
  • Manufactured in an ISO 9001:2000 certified facility.
  • 16 sizes, color-coded EPDM, Nitrile, and Silicone elastomers may be used with various hardware options to match performance characteristics with service conditions.

SPECIFICATIONS

  • Pressure resistant to 20psig (40 ft of head)
  • Standard EPDM rubber (black)
  • Oil Resistant Nitrile rubber (green)
  • Temperature resistant Silicone rubber (gray)
  • Low Durometer for fragile pipe EPDM rubber (blue) Shore 40 ± 5
  • Hardware Options - S316 Stainless Steel and Zinc Dichromate Coated Steel (1470 hr salt spray tested) hardware
